Installation¶

📥 Setup your installation environment¶

1. Set secrets variables provided by R2Devops in your shell

   export REPOSITORY_TOKEN="REPLACE_ME"
   export REGISTRY_TOKEN="REPLACE_ME"
   export FRONTEND_IMAGE_TAG="REPLACE_ME"


2. Clone the repository on your server

   git clone https://r2devops:${REPOSITORY_TOKEN}@gitlab.com/r2devops/self-hosted.git r2devops
   cd r2devops


3. Create your initial configuration file

   cp .env.example .env


4. Set the tag of your dedicated image in .env file

   sed -i "s/REPLACE_ME_BY_COMPANY_TAG/${FRONTEND_IMAGE_TAG}/g" .env


📄 Domain name¶

1. Edit the .env file by updating value of DOMAIN_NAME, CERTIFICATE_EMAIL and JOBS_GITLAB_URL variables

   .env

   DOMAIN_NAME="r2devops.<domain_name>"
   CERTIFICATE_EMAIL="<your_email>"
   JOBS_GITLAB_URL="<url_of_your_gitlab_instance>"


   Info

   For example, if you have the domain name mydomain.com, the frontend URL will be https://r2devops.mydomain.com and the backend URL will be https://api.r2devops.mydomain.com

2. Create DNS records

   The application needs two DNS records to work properly:

   1. Frontend
      • Name: r2devops.<domain_name>
      • Type: A
      • Content: <your-server-public-ip>
   2. Backend
      • Name: api.r2devops.<domain_name>
      • Type: A
      • Content: <your-server-public-ip>

🦊 GitLab OIDC¶

R2Devops uses GitLab as an OIDC (OpenID Connect) provider to authenticate users. Let's see how to connect it to your GitLab instance.

Create an application¶

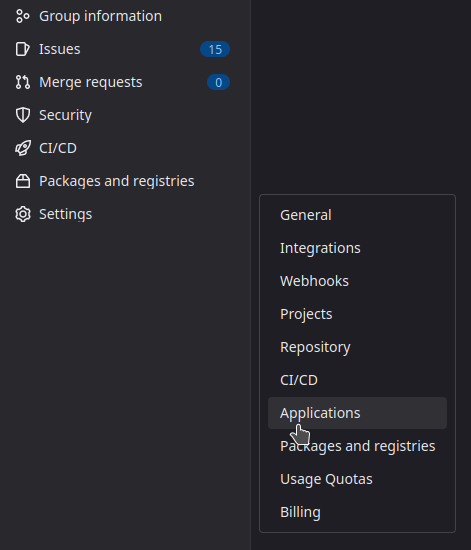

Choose a group on your GitLab instance to create an application. It can be any group. Open the chosen group in GitLab interface and navigate through Settings > Applications:

Then, create an application with the following information :

• Name: R2Devops self-hosted
• Redirect URI : https://<API_URL>/kratos/public/self-service/methods/oidc/callback/gitlab
• Confidential: true (let the box checked)
• Scopes: openid, email

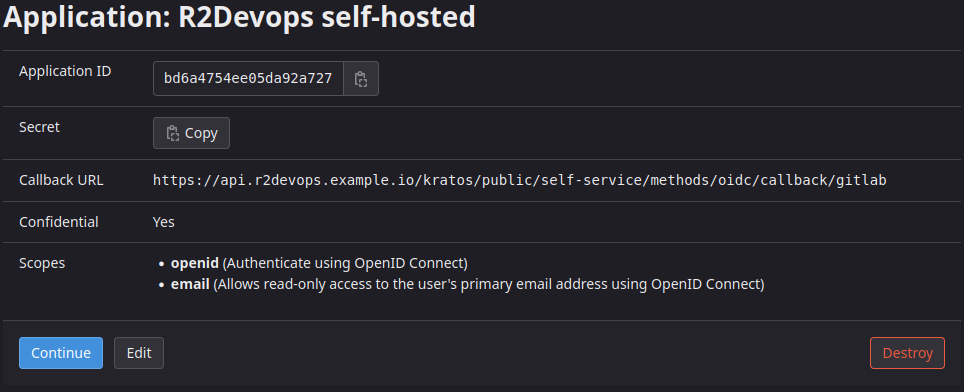

Click on Save Application and you should see the following screen:

Update the configuration¶

In .env file, in the OIDC section:

1. Copy/paste the Application ID and the Secret from the application you just created
2. Update the GITLAB_INSTANCE_DOMAIN value with the domain of your GitLab self-hosted instance

# OIDC
GITLAB_OIDC='
[
  {
    "id": "gitlab",
    "provider": "gitlab",
    "issuer_url": "<GITLAB_INSTANCE_DOMAIN>",
    "client_id": "<APPLICATION_ID>",
    "client_secret": "<APPLICATION_SECRET>",
    "mapper_url": "file:///etc/config/kratos/oidc.gitlab.jsonnet",
    "scope": [
      "openid",
      "email"
    ]
  }
]
'

🔐 Generate secrets¶

Generate random secrets for all components:

sed -i "s/REPLACE_ME_BY_JOBS_DB_PASSWORD/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_JOBS_REDIS_PASSWORD/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_S3_SECRET_KEY/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_KRATOS_DB_PASSWORD/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_SECRET_COOKIE/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_SECRET_CIPHER/$(openssl rand -hex 16)/g" .env
sed -i "s/REPLACE_ME_BY_SECRET_DEFAULT/$(openssl rand -hex 16)/g" .env

🐳 Docker login¶

Login to R2Devops registry

echo $REGISTRY_TOKEN | docker login --username r2devops --password-stdin https://registry.gitlab.com/v2/r2devops

🚀 Launch the application¶

Run the following command to start the system

docker compose up -d

docker compose up -d
